The instruction screenshoot is created on F7S platform. But path and method still applied to models: F3,F3G, F3D, F3S,F3SN, F3SG, F5D, F5G, F7SN,F7SG

Path: Diesel Heavy Vehicle→Hino (V8.67)→16 PIN→By System→Engine System→Hino Engine→Special Function→Check Functions→DPF Check→DPR Forced Regeneration

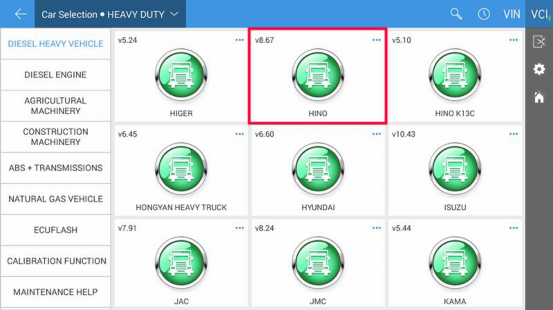

Turn on the FCAR F7S-G and connect it to the VCI via Bluetooth . Attach the VCI box to the OBD-II connector and plug the OBD-II connector into the OBD socket in the car. Ignition on and enter “Diagnosis”, “Diesel Heavy Vehicle” and “Hino”.

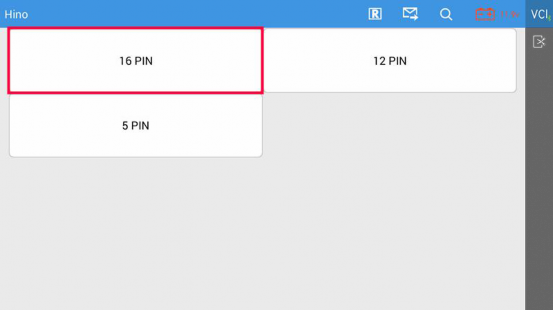

Select “16 PIN”;

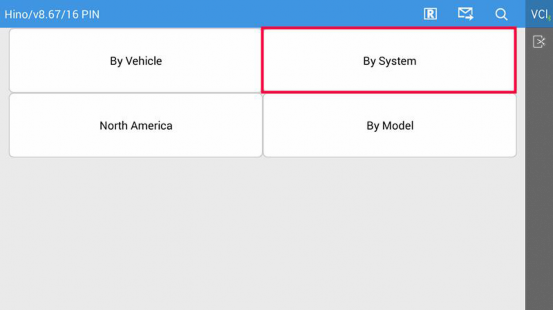

Select “By System”;

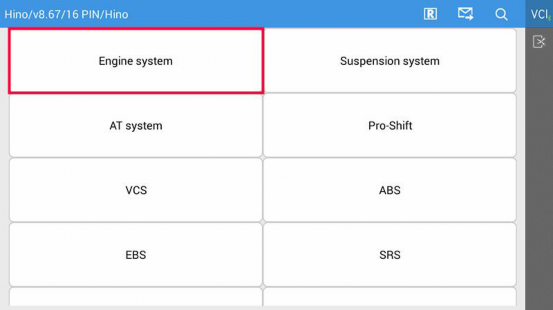

Select “Engine System”;

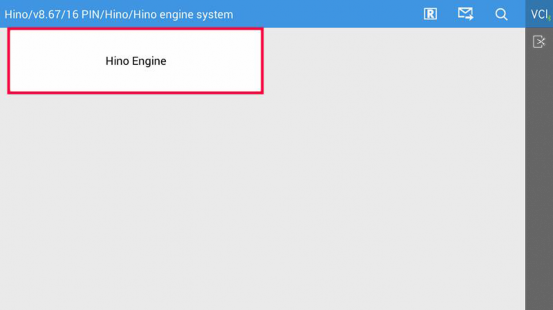

Click “Hino Engine”;

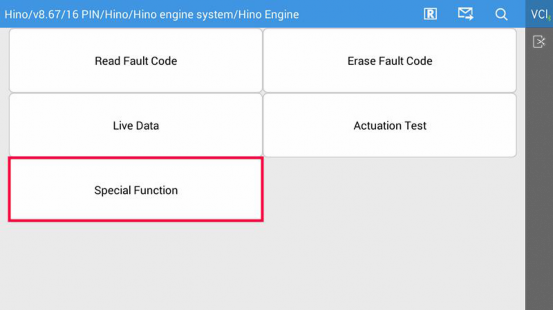

Select “Special Function”;

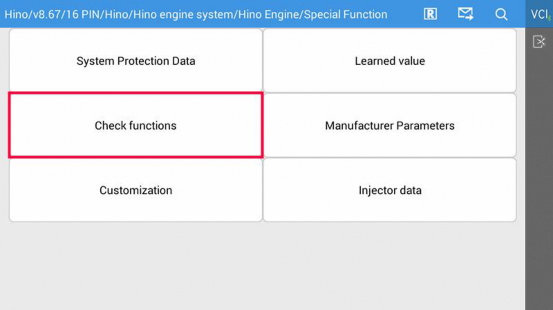

Select “Check Functions”;

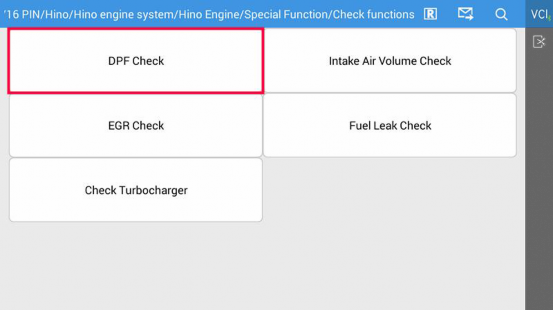

Select “DPF Check”;

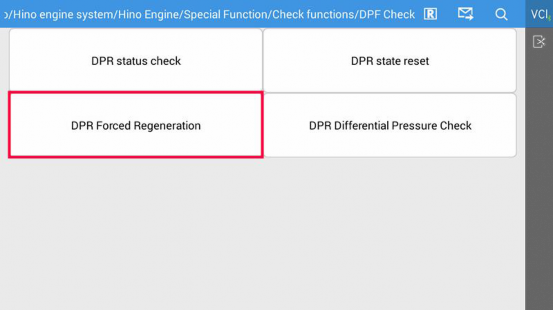

Select “DPR Forced Regeneration”;

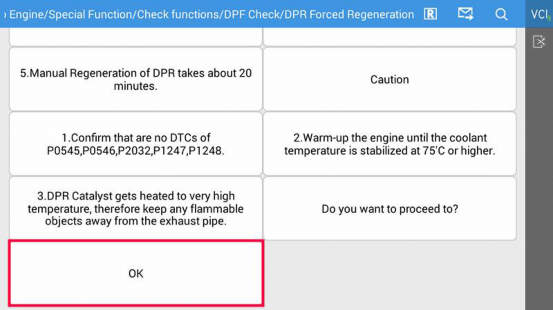

Read the instructions carefully before clicking “OK”;

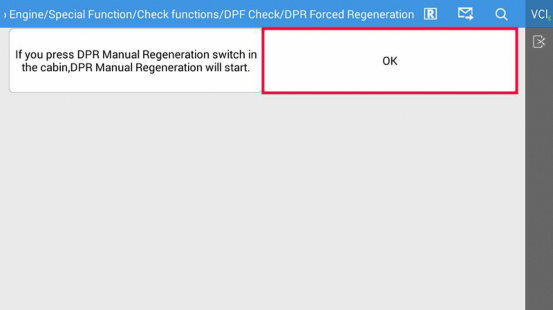

Read the information carefully before clicking “OK”;

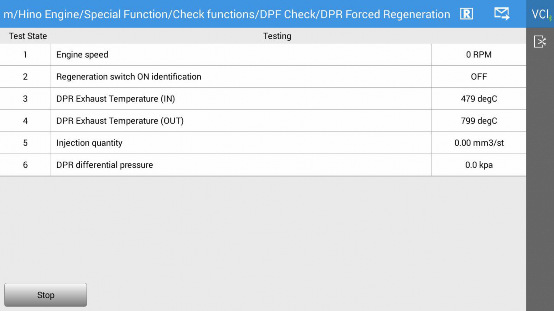

The test will stop and idle speed will return to normal when the particulate filter is sufficiently cleaned of soot. Press “stop” to exit the process early if need be.
