To do Detroit 500K (green connector), aftertreatment DPF forced regen, follow the following path:

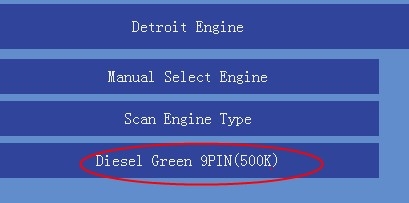

1) using Diesel Green 9pin to cummunicate and read the engine code to make sure that there is no aftertreatment code present

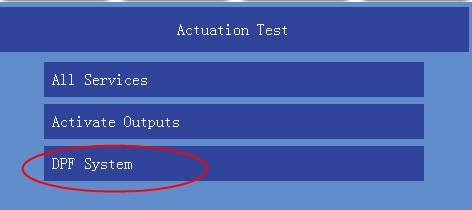

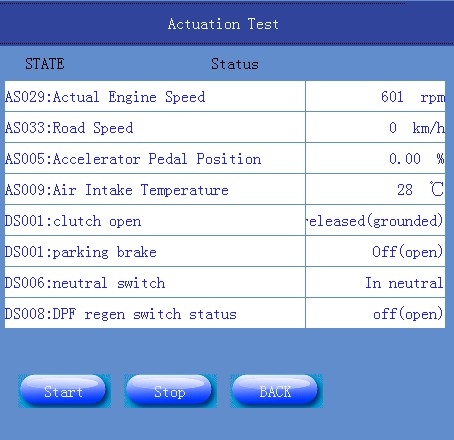

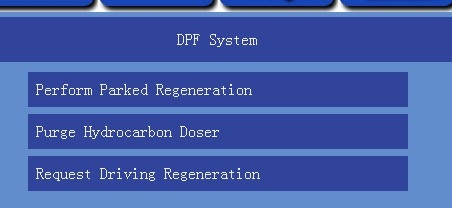

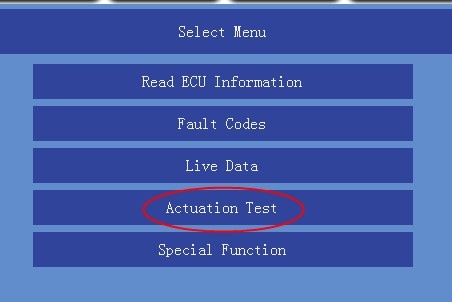

2) the following path to do forced regen:
