The instruction screenshoot is created on F7S platform. But path and method still applied to models: F3,F3G, F3D, F3S,F3SN, F3SG, F5D, F5G, F7SN,F7SG

Path:Diesel Heavy Vehicle→Isuzu (V10.43)→Enter By System→Powertrain→6HK1→ Powertrain→6HK1-TC (After 2007) →Special Function→Advanced Features→DPF Normal Regeneration.

Turn on the FCAR F7S-G and connect it to the VCI via Bluetooth . Attach the VCI box to the OBD-II connector and plug the OBD-II connector into the OBD socket in the car.

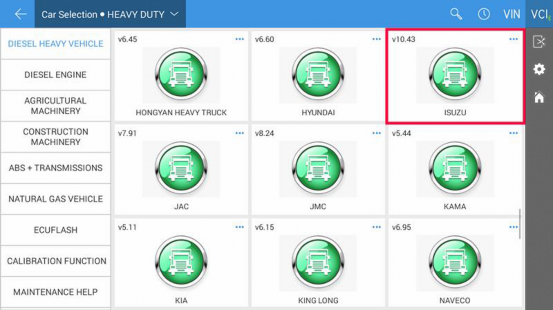

Ignition on and enter “Diagnosis”, “Diesel Heavy Vehicle” and “Isuzu” .

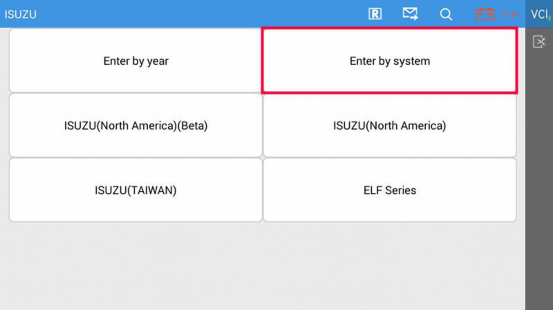

Select “Enter by System”;

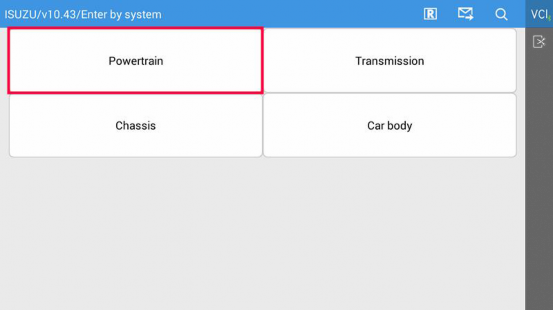

Select “Powertrain”;

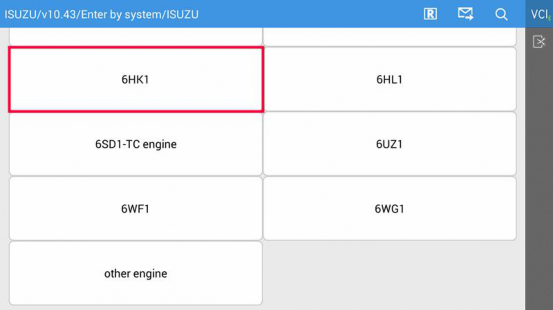

Select “6HK1”;

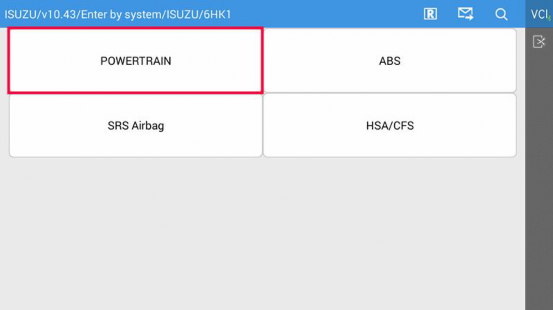

Select “Powertrain”;

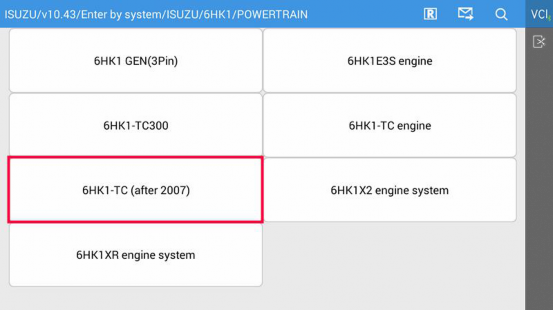

Select “6HK1-TC (After 2007)”;

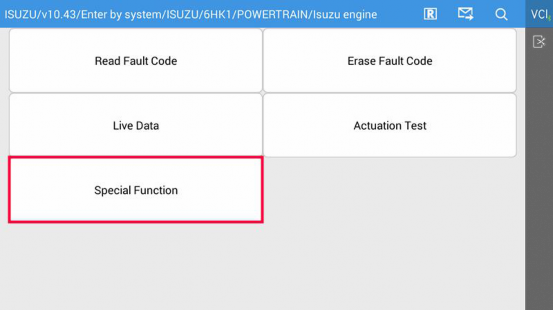

Select “Special Function”;

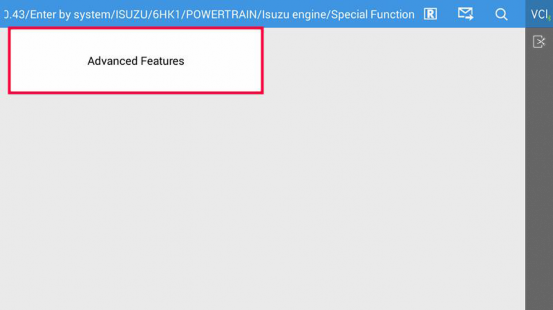

Click “Advanced Features”;

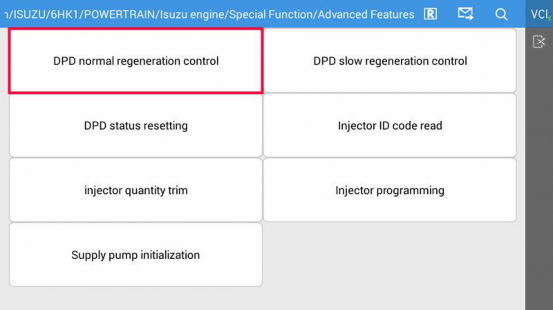

Select “DPD Normal Regeneration Control”;

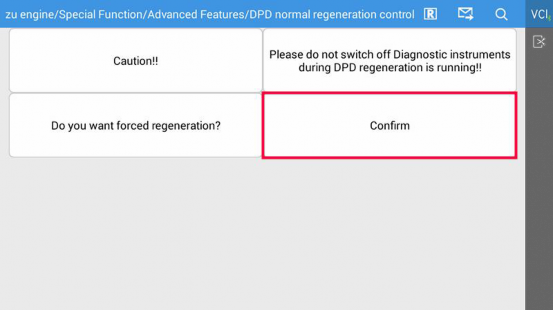

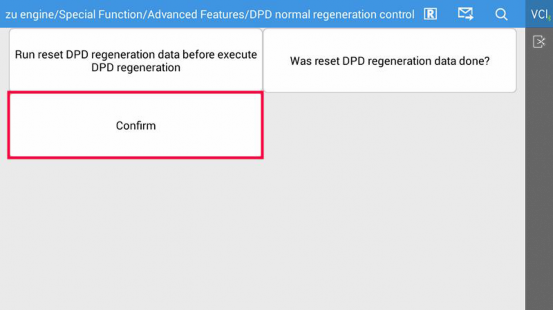

Observe the instructions carefully before clicking “Confirm”;

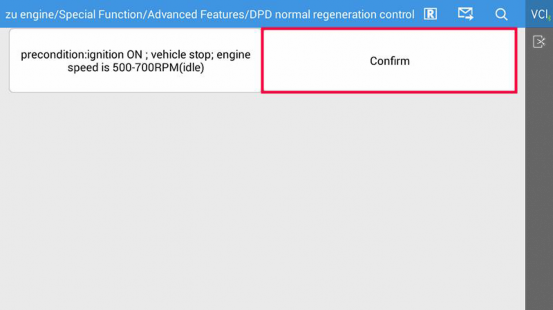

Make sure the preconditions are met before clicking “Confirm”;

Read the instructions carefully before clicking “Confirm”;

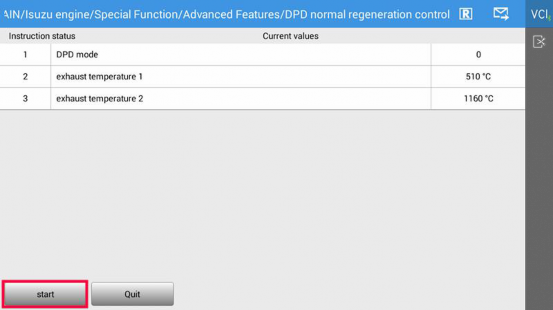

Click “Start” to initiate the DPD Regeneration;

When the engine speed drops and stabilizes or when the DPF level shown on the instrument panel falls to zero, click “F3” to exit the regeneration process as it’s been finished.

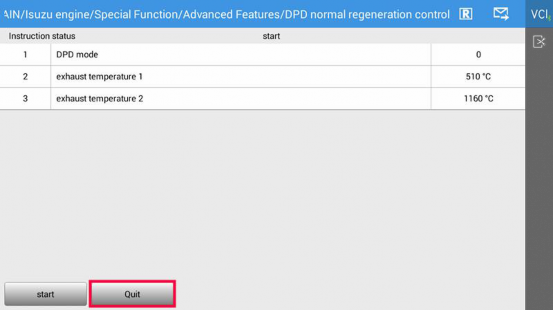

Press "quit" to exit the process early if need be.
